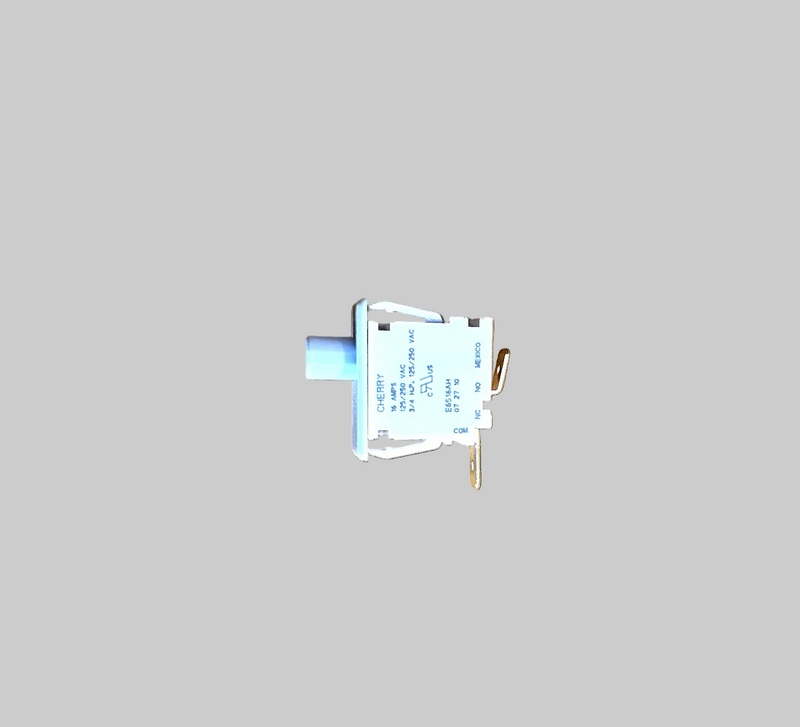

Electrolux Frigidaire Dryer Door Switch 0E6516AH – ERP Replacement

Dryer Door Switch For: Electrolux, Frigidaire, Gibson, Tappan, Kelvinator, Westinghouse, Kenmore 0E6516AH, 134813600, AP4316049, 137364800

Restore safe dryer operation with this ERP aftermarket replacement door switch for compatible Electrolux-family dryer applications and related appliance models. The switch detects when the door is closed so the appliance can operate; a failed switch may stop the dryer from starting, interrupt a cycle, or cause intermittent operation. The listed references may also be used for compatible trash compactor or combination washer/dryer applications, so verify the complete appliance model and terminal configuration before ordering.

Compatible Part Numbers

• 0E6516AH
• 134813600
• AP4316049
• 137364800
• ER0E6516AH

Key Features

• Direct replacement: Replaces the listed door-switch references for compatible appliance models.
• Door sensing: Signals the appliance control that the door is closed and ready for operation.
• Safety support: Helps prevent operation when the door is open, when the appliance is designed for that safety function.
• Installation check: Match the switch shape, terminals, mounting, actuator, and wiring with the original.

Fixes These Symptoms

• Dryer will not start when the door is closed
• Dryer stops or pauses when the door is moved
• Intermittent door-sensing operation
• Cycle will not run even though power is present

Compatible OEM Brands

Electrolux, Frigidaire, Gibson, Tappan, Kelvinator, Westinghouse, Kenmore

Compatible Models

Fits various models. Please verify compatibility with us before ordering

Installation Instructions

1. Disconnect electrical power before servicing. For gas dryers, shut off the gas supply as well.
2. Remove the required panels or trim and document the original wire positions.
3. Compare the replacement switch’s terminals, actuator, mounting, and switch configuration with the original.
4. Transfer wires one at a time or follow the appliance service documentation, then secure the switch in its original position.
5. Reinstall all guards and panels, restore power, and perform a supervised door-sensing and start/stop test.

Use a qualified technician for gas appliances or unfamiliar electrical repairs.
