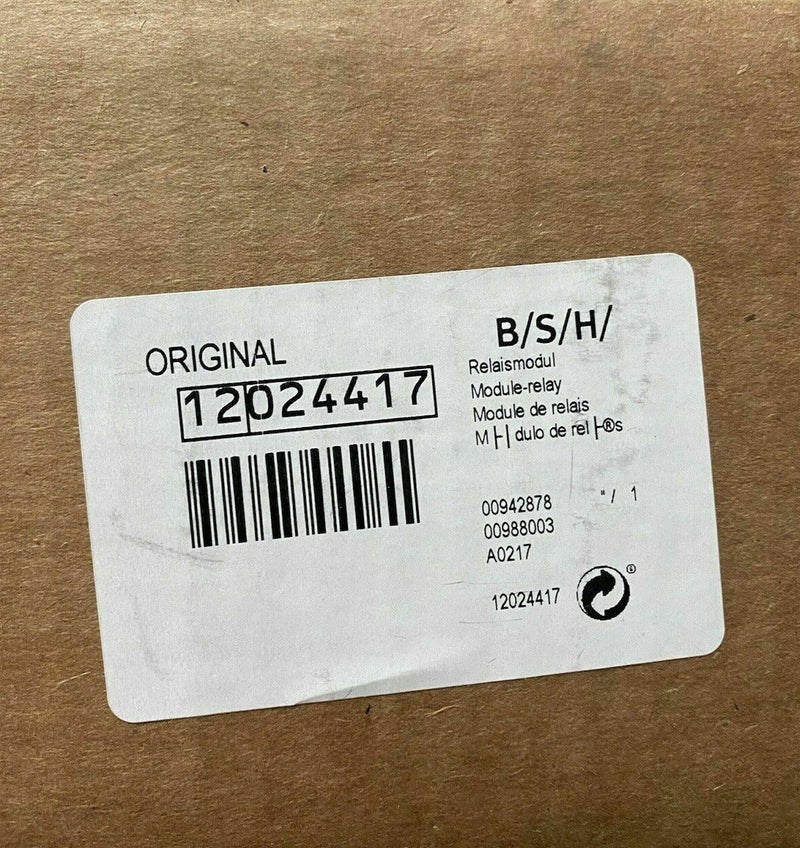

Bosch 12024417 Appliance Relay Module

Appliance Relay Module – Bosch

The Bosch 12024417 relay module is an electromechanical switching component that allows the control board to switch high-current loads (such as heating elements, motors, or pumps) on and off using a low-voltage control signal. When the relay fails, the component it controls may stop working entirely or run continuously without shutting off. This direct-replacement relay module restores correct switching operation on compatible Bosch appliances.

Compatible Part Numbers

• 12024417

Key Features

• Direct OEM-spec replacement – engineered to Bosch factory specifications for correct contact rating, coil voltage, and physical fit
• Restores control board switching of high-current loads – allows the control board to reliably switch heating elements, motors, or pumps
• Resolves no-function or continuous-run conditions caused by relay failure – a failed relay contact causes the controlled component to stop or run non-stop
• Direct board-mount or harness replacement – installs at the existing relay socket or mounting location

Fixes These Symptoms

• Appliance component (element, motor, or pump) not activating when commanded by the control board
• Component running continuously without shutting off
• Relay visibly burned, pitted, or failing continuity/resistance testing
• Intermittent or erratic operation of a specific appliance function

Compatible Brands

• Bosch, Thermador, Siemens

Always verify your model number before ordering. Check the label on your appliance to confirm compatibility.
