Bosch 11012631 Dishwasher Spray Arm | Replaces 11010053, 11010052, 11008317, 11008316

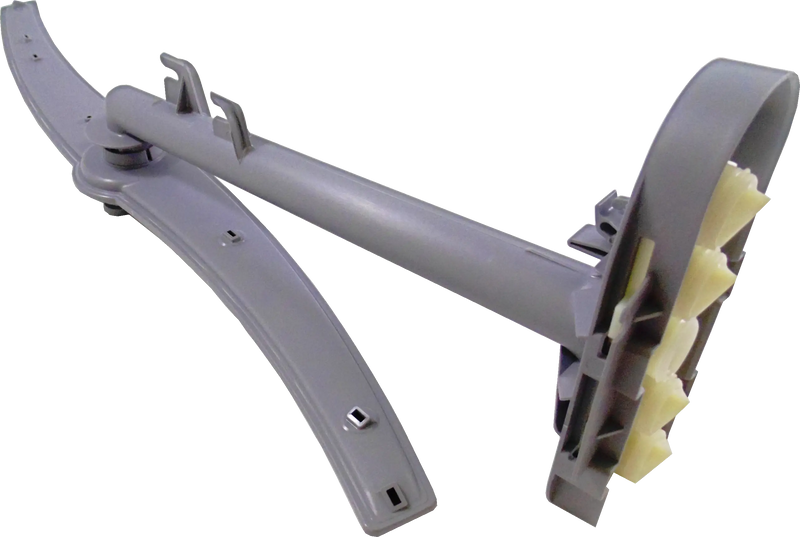

Dishwasher Upper Spray Arm with Inlet Pipe – Bosch

The Bosch 11012631 upper dishwasher spray arm assembly includes the spray arm and inlet pipe that supplies and distributes wash water to the upper rack for effective cleaning. Made from gray plastic. Approximate dimensions: 465 mm wide, 60 mm high, with a 285 mm inlet tube. When the spray arm or inlet pipe cracks, the jets clog beyond clearing, or the arm stops rotating, upper-rack dishes will not wash properly. This direct-replacement assembly restores full upper-rack wash coverage.

Compatible Part Numbers

• 11012631
• 11010053
• 11010052
• 11008317
• 11008316
• 00668147
• 668147

Key Features

• Direct spec replacement – gray plastic, ~465 mm wide, 60 mm high, 285 mm inlet tube; engineered to Bosch factory specifications
• Complete assembly with inlet pipe – includes the spray arm and the inlet tube that feeds water into the arm
• Restores upper-rack wash coverage – distributes pressurized water evenly across all dishes on the upper rack
• Tool-free installation – twists or snaps into the existing upper rack spray arm mount

Fixes These Symptoms

• Upper-rack dishes coming out dirty or with food residue after a wash cycle
• Upper spray arm not rotating during the wash cycle
• Inlet pipe cracked or broken, reducing water supply to the upper arm
• Spray arm jets blocked, cracked, or damaged beyond cleaning

Compatible Brands

• Bosch, Thermador, Gaggenau

Always verify your model number before ordering. Check the label inside the dishwasher door to confirm compatibility.
