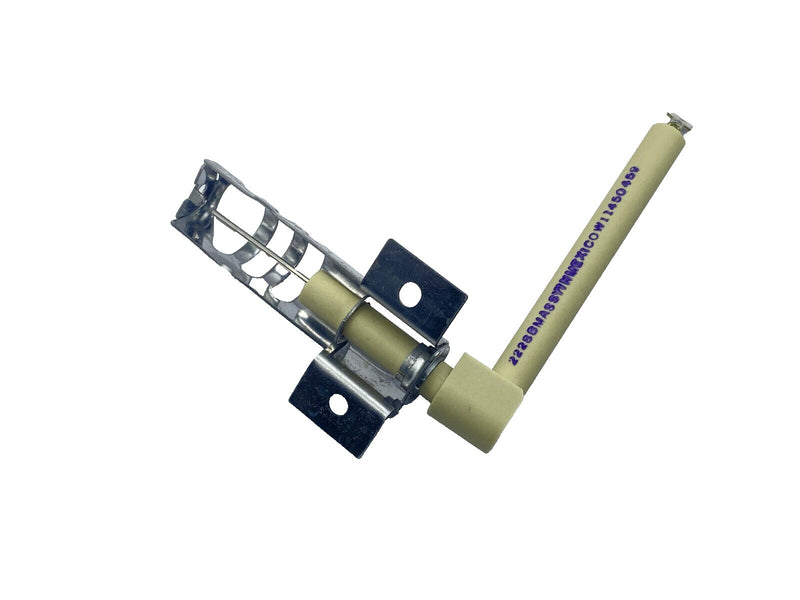

Whirlpool Oven Burner Igniter W11524031

Oven Burner Igniter – Whirlpool

Whirlpool Oven Burner Igniter W11524031 This oven burner igniter creates the ignition source required to light the gas burner safely and consistently. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper. Whirlpool also makes various appliance models for Sears & Kenmore. Genuine / OEM / Authentic Whirlpool IGNTR W11524031 Part Compatibility: If you are unsure whether the part you are purchasing is compatible with your appliance, please provide us with an image of the appliance model and serial number label so that we can verify compatibility. We can also supply an illustrated part breakdown of your appliance model with item numbers. Most products are sold individually unless explicitly specified as a pair. We can cross-reference part numbers for you, but please be aware that part numbers may have changed over the years. A detailed list of cross-reference numbers is available, but a change in part number may indicate a redesign, potentially resulting in additional or fewer components such as screws or wire loop assemblies. Part Compatibility: If you are unsure whether the part you are purchasing is compatible with your appliance, please provide us with an image of the appliance model and serial number label so that we can verify compatibility. We can also supply an illustrated part breakdown of your appliance model with item numbers. Most products are sold individually unless explicitly specified as a pair. We can cross-reference part numbers for you Product Specifications Brand: Whirlpool Primary SKU: W11524031 Product type: Oven Burner Igniter Application: model-specific oven repair Verify connector style, lead length, mounting position, ceramic shape, and burner application Inspect gas flow, ground path, wiring, and burner ports Replaces / Cross-Reference Part Numbers W11524031 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Burner will not ignite delayed ignition weak glow or spark repeated clicking cracked ceramic or damaged lead Installation Instructions Disconnect power and shut off gas. Let the appliance cool, document wiring and burner orientation, remove components needed for access, transfer connections carefully, secure the igniter without touching or stressing the fragile element or ceramic, reassemble all shields, restore gas, leak-test disturbed fittings, then restore power and test ignition. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system work or unfamiliar electrical repairs.

Compatible Part Numbers

• W11524031

Key Features

• Product type: Oven Burner Igniter
• SKU / MPN: W11524031

Fixes These Symptoms

• Burner will not ignite
• delayed ignition
• weak glow or spark
• repeated clicking
• cracked ceramic or damaged lead

Compatible Brands

• Whirlpool

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect power and shut off gas. Let the appliance cool, document wiring and burner orientation, remove components needed for access, transfer connections carefully, secure the igniter without touching or stressing the fragile element or ceramic, reassemble all shields, restore gas, leak-test disturbed fittings, then restore power and test ignition.
