Whirlpool Oven Range Bake/Broil Element WP77001094

Oven Range Bake/Broil Element – Whirlpool

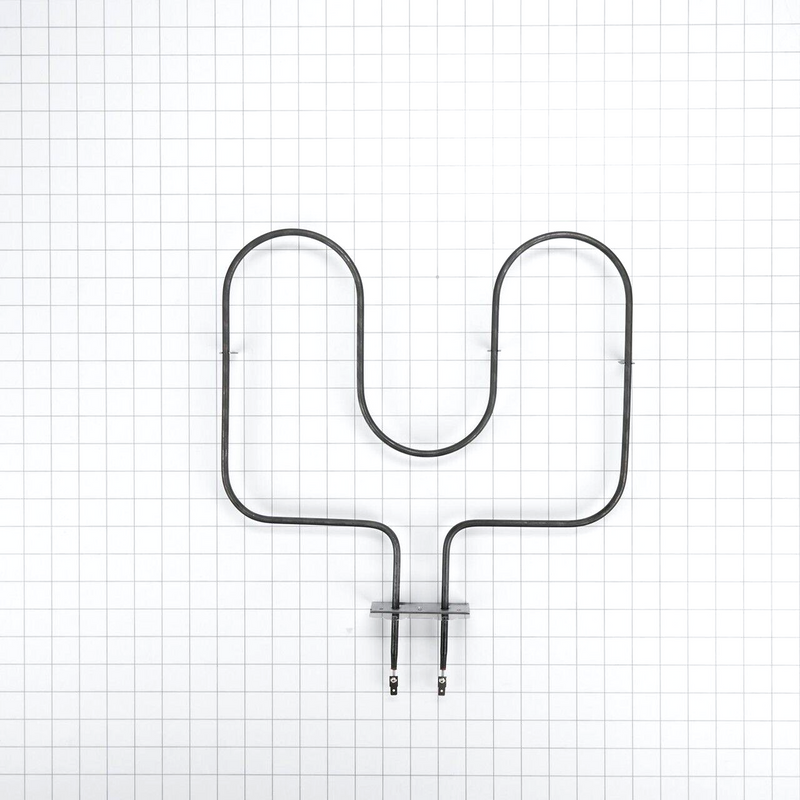

Whirlpool Oven Range Bake/Broil Element WP77001094 This oven range bake/broil element converts electrical energy into controlled heat for baking, broiling, surface cooking, or warming. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper. Whirlpool also makes various appliance models for Sears & Kenmore. Genuine / OEM / Authentic Whirlpool ELEMENT BAKE WP77001094 Part Compatibility: If you are unsure whether the part you are purchasing is compatible with your appliance, please provide us with an image of the appliance model and serial number label so that we can verify compatibility. We can also supply an illustrated part breakdown of your appliance model with item numbers. Most products are sold individually unless explicitly specified as a pair. We can cross-reference part numbers for you, but please be aware that part numbers may have changed over the years. A detailed list of cross-reference numbers is available, but a change in part number may indicate a redesign, potentially resulting in additional or fewer components such as screws or wire loop assemblies. Part Compatibility: If you are unsure whether the part you are purchasing is compatible with your appliance, please provide us with an image of the appliance model and serial number label so that we can verify compatibility. We Product Specifications Brand: Whirlpool Primary SKU: WP77001094 Product type: Oven Range Bake/Broil Element Application: model-specific oven repair Verify voltage, wattage where marked, terminal spacing, dimensions, mounting style, and element location Inspect terminals and wiring for heat damage before installation Replaces / Cross-Reference Part Numbers WP77001094 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure No heat or insufficient heat uneven temperature visible blistering or break in the element sparking breaker trips Installation Instructions Disconnect power at the breaker and verify the circuit is de-energized. Let the appliance cool, remove mounting fasteners, support the wires so they cannot fall behind the liner, transfer terminals firmly, secure the element without bending it, restore power, and test at a low setting while monitoring operation. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system work, or unfamiliar electrical repairs.

Compatible Part Numbers

• WP77001094

Key Features

• Product type: Oven Range Bake/Broil Element
• SKU / MPN: WP77001094

Fixes These Symptoms

• No heat or insufficient heat
• uneven temperature
• visible blistering or break in the element
• sparking
• breaker trips

Compatible Brands

• Whirlpool

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect power at the breaker and verify the circuit is de-energized. Let the appliance cool, remove mounting fasteners, support the wires so they cannot fall behind the liner, transfer terminals firmly, secure the element without bending it, restore power, and test at a low setting while monitoring operation.
