Whirlpool Stand Mixer Transmission Housing AAP-8212396 8212396 AP4308824

Stand Mixer Transmission Housing – Whirlpool

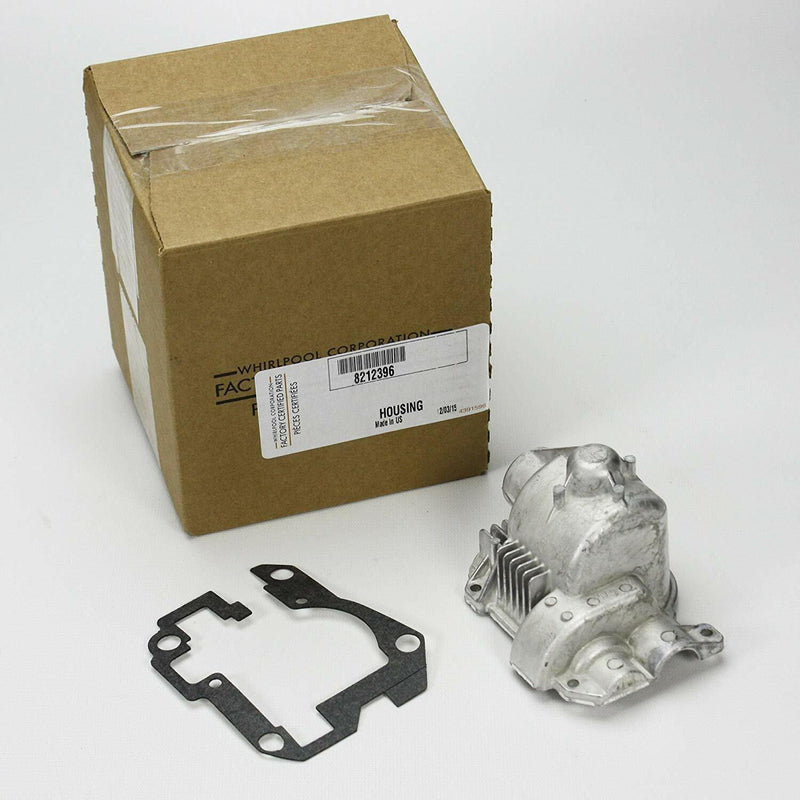

Whirlpool Stand Mixer Transmission Housing AAP-8212396 8212396 AP4308824 This stand mixer transmission housing transfers, changes, or engages mechanical drive motion for washing, spinning, mixing, or attachment operation. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper. Whirlpool also makes various appliance models for Sears & Kenmore. OEM Whirlpool 8212396 Stand Mixer Metal Transmission Housing Gear Description This gear case housing cover is used on many Kitchen Aid stand mixers. Gasket is included with new housing. If the gasket only is needed order part number WP9709511. Cross Reference Information Part Number 8212396 replaces AP4308824 1266762, 8211779, 9703381, 9703671, 9707425, 9709125, AH1871466, EA1871466, PS1871466, W10193480. Product Specifications Brand: Whirlpool Primary SKU: AAP-8212396 Product type: Stand Mixer Transmission Housing Application: model-specific stand mixer repair Match shaft profile, spline count, gear teeth, orientation, lubrication requirement, and included hardware Inspect mating gears, splines, bearings, couplers, and drive components Replaces / Cross-Reference Part Numbers AAP-8212396, 8212396, AP4308824, 1266762, 8211779, 9703381, 9703671, 9707425, 9709125, AH1871466, EA1871466, PS1871466, W10193480 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Agitator, basket, mixer, or attachment will not move correctly slipping, clicking, grinding, or stripped drive weak agitation or spin incorrect speed or direction Installation Instructions Disconnect power and shut off water when applicable. Document component order and orientation, remove covers and retaining hardware, inspect mating splines and gears, transfer specified grease or hardware only as directed, seat the replacement fully without forcing it, rotate the mechanism by hand, reinstall all guards, reconnect utilities, and perform a controlled test. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for unfamiliar electrical or mechanical repairs.

Compatible Part Numbers

• AAP-8212396
• 8212396
• AP4308824
• 1266762
• 8211779
• 9703381
• 9703671
• 9707425
• 9709125
• AH1871466
• EA1871466
• PS1871466
• W10193480

Key Features

• Product type: Stand Mixer Transmission Housing
• SKU / MPN: AAP-8212396

Fixes These Symptoms

• Agitator
• basket
• mixer
• or attachment will not move correctly
• slipping
• clicking
• grinding
• or stripped drive
• weak agitation or spin
• incorrect speed or direction

Compatible Brands

• Whirlpool
• Maytag
• KitchenAid
• Amana
• Jenn-Air
• Roper
• Kenmore

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect power and shut off water when applicable. Document component order and orientation, remove covers and retaining hardware, inspect mating splines and gears, transfer specified grease or hardware only as directed, seat the replacement fully without forcing it, rotate the mechanism by hand, reinstall all guards, reconnect utilities, and perform a controlled test.
