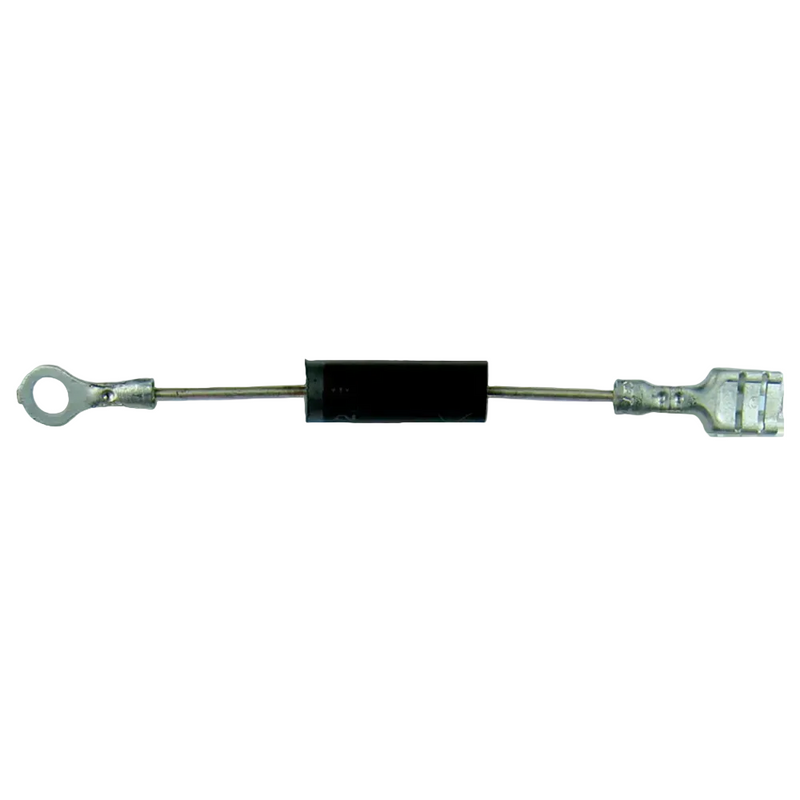

Microwave Diode 11QBP0236 Universal 3-1/2in 12 kV 350 mA #8 Ring X 1/4in Female For: GE, Electrolux, Emerson 8205489 WB27X1160

Microwave Diode 11QBP0236 Universal 3-1/2" 12 kV 350 mA #8 Ring X 1/4" Female For: GE, Electrolux, Emerson

This 11QBP0236 universal microwave diode is a direct replacement for a failed or damaged diode in compatible microwave appliances. It helps the microwave high-voltage circuit convert power correctly for heating. A worn diode can cause a microwave to run without heating, heat intermittently, or fail a diode test.

Compatible Part Numbers

• Product Name: H.V. Diode

  Cross Reference Info:
  11QBP0236, 11QBP0236PK, 254740, 340791, AP2026385, EAP239843,
  MW0236, PS239843, WB27X0229, WB27X0255, WB27X0272, WB27X0286,
  WB27X0330, WB27X0336, WB27X0350, WB27X0364, WB27X0419, WB27X0503, WB27X0505, WB27X0530, WB27X0537, WB27X0558, WB27X0608, WB27X0944, WB27X10072, WB27X1160, WB27X229, WB27X255, WB27X272, WB27X286,
  WB27X330, WB27X336, WB27X350, WB27X364, WB27X419, WB27X503,
  WB27X5040, WB27X5041, WB27X5047, WB27X505, WB27X530, WB27X5318,
  WB27X5333, WB27X537, WB27X5386, WB27X558, WB27X608, WB27X944

Key Features

• Direct replacement: Replaces compatible microwave diode part numbers 11QBP0236, 8205489, and WB27X1160.
• Electrical specification: 3-1/2" length, 12 kV, 350 mA.
• Secure connections: Banded side uses a #8 ring terminal and the non-banded side uses a 1/4" female quick-disconnect.
• Installation ease: Designed for a straightforward replacement when the appliance model and terminal orientation are verified first.

Fixes These Symptoms

• Microwave runs but does not heat.
• Microwave heats intermittently or weakly.
• Diode fails testing or shows signs of damage.

Compatible Brands

• GE
• Electrolux
• Emerson
• Many other brands

Compatible Models

Fits various models. Please verify compatibility with us before ordering

Installation and Safety

Unplug the microwave before service and allow it to cool. Microwave high-voltage circuits can retain a dangerous charge even after unplugging, so access and replacement should be performed by a qualified technician. Match the banded side to the #8 ring connection and the non-banded side to the 1/4" female quick-disconnect. Verify the model number and terminal orientation before installation.

For appliance cleaning products, browse affresh products.

California Proposition 65 Warning

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Always verify your model number before ordering. Check the label inside the microwave to confirm compatibility.
