1/4" Air Line Tubing Kit 100FT Nylon Hose Quick Connect Fittings 27PCS

Hose – Does not apply

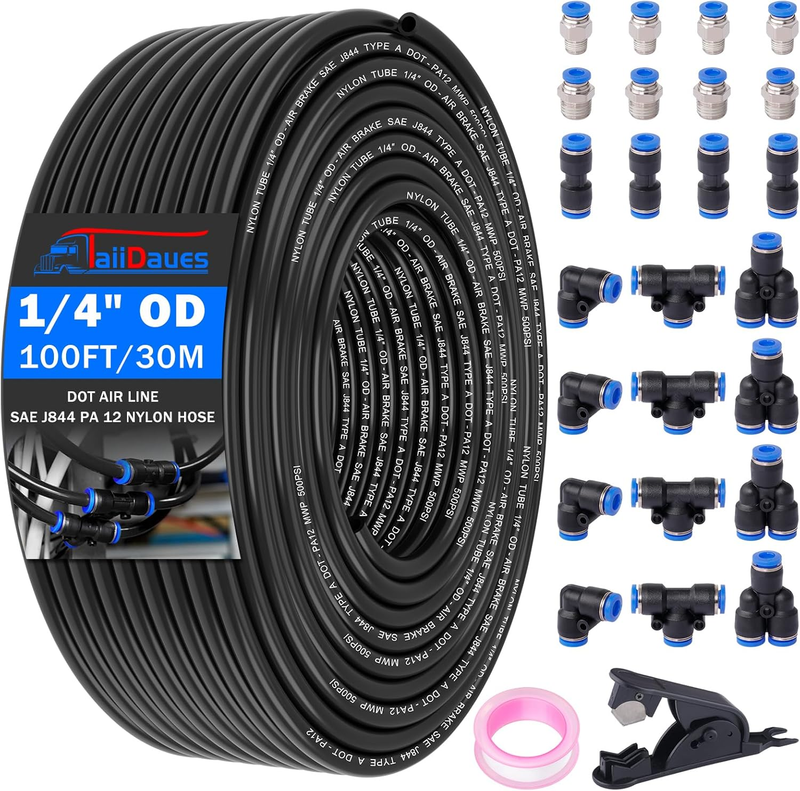

YOU WILL GET - The 1/4" Air Hose Fittings Kit includes 100 feet(30.48m) of black 1/4" Air Line. 4 Splitters, 4 Elbows, 4 Tees and 4 Unions. 8 male straight fittings fit 1/4" Tube OD with 1/8" and 1/4" NPT Thread, 1 pc Plastic Tubing Cutter, 1 roll (4 meters) Thread Seal Tape（Pink shell and blue shell are distributed randomly) SAE J844 DOT APPROVED HOSE - The 1/4" air line made of high-quality PA12 Polyamide, meets DOT Standards and SAE J844 air brake system requirements. Working Pressure Of 1mpa (145 Psi) And A Max Pressure 500 Psi. Working Temperature: -40 ℃+120 ℃. Provide highly flexible , excellent resistance to wear and Impact PUSH TO CONNECT FITTINGS - Quick connect air hose fittings kit made of high quality Polybutylene Terephtalate (PBT) and with stainless steel lock claw and good steel washers for a thousand bounces. High pressure resistance and environmental, can withstand strong pressure without tripping. Fluid type: air, vacuum, 0 - 145 Psi, 0 - 0.9 Mpa. Proof pressure: 1.32 Mpa. Temperature Range: 0-60 °C | 32 -140 °F WIDE APPLICATION -1/4 air line fitting kit is suitable for PU / PA / PE / PVC lines or hoses. Our 1/4" air hose for air brake system,air or fluid transfer, transfer liquids, air, water or solids. They widely applied in automotive, manufacturing production lines or truck or trailer repairs. Besides those, daily gardening maintenance and lawn mower machine areas also need those items EASY TO INSTALL - Push to connect air fittings assortment is a simple push in design and easy to be installed. Release rings at the top could be pushed down easily when inserting the tube into the coupler and bouncing up immediately when taking out the tube. Cutting tool is included for meeting your tube length requirements UPGRADE YOUR PNEUMATIC SYSTEM - Our Tubing 1/4 Air Brake Line Pneumatic Hose offers excellent flexibility and resilience. Ensures compatibility with various fittings and pneumatic systems, providing ease of installation and versatility based on your space and compressed air requirements. This Nylon Hose Will Meet Your Needs With Ease INCLUDE: 1/4" DOT AIR LINE WITH AIR LINE FITTINGS KIT 100 FT(30.48m）Nylon PA hose 4 PCS Splitters, 4 PCS Elbows, 4 PCS Tees , 4 PCS Unions. 4 PCS 1/4" OD x 1/8" NPT Thread Male Straight Fittings 4 PCS 1/4" OD x 1/4" NPT Thread Male Straight Fittings 1 pc Plastic Tubing Cutter, 1 roll (4 meters) Thread Seal Tape 27PCS Air Line Tubing Kit MORE PRODUCT 1/4" OD 1/4" PA 12 & PBT Material PA 12 & PBT 145 psi/500 psi Work Pressure 145 psi/500 psi -40°F(hose)/32°F Lowest Temperature -40°F(hose)/32°F 140°F/248℉(hose) Maximum Temperature 140°F/248℉(hose) 1/4" OD 3/8" PA 12 & PBT Material PA 12 & PBT 145 psi/500 psi Work Pressure 145 psi/500 psi -40°F(hose)/32°F Lowest Temperature -40°F(hose)/32°F 140°F/248℉(hose) Maximum Temperature 140°F/248℉(hose) 1/4" OD 1/4" PA 12 & PBT Material PA 12/ CA 360 Brass 145 psi/500 psi Work Pressure 250 psi/500 psi -40°F(hose)/32°F Lowest Temperature -4°F/-40°F(hose) 140°F/248℉(hose) Maximum Temperature 200°F/248℉(hose) 1/4" OD 1/4" PA 12 & PBT Material PA 12/ CA 360 Brass 145 psi/500 psi Work Pressure 250 psi/500 psi -40°F(hose)/32°F Lowest Temperature -4°F/-40°F(hose) 140°F/248℉(hose) Maximum Temperature 200°F/248℉(hose)

Compatible Part Numbers

• 1b2a2981-fce3-4a40-8c22-4235c85a6916

Key Features

• Product type: Hose
• SKU / MPN: 1b2a2981-fce3-4a40-8c22-4235c85a6916
• Listed vendor: Does not apply

Fixes These Symptoms

• Use as a replacement only after confirming the original hose is damaged, worn, missing, or no longer performing its intended function.

Compatible Brands

• No additional brand compatibility is asserted without verified model data.

Always verify your complete appliance model number and the exact part number before ordering.
