Furnace Fan Relay Coil Voltage 24 VAC 184-20114-401, 184-20114-406, 90-380

Relay – Packard

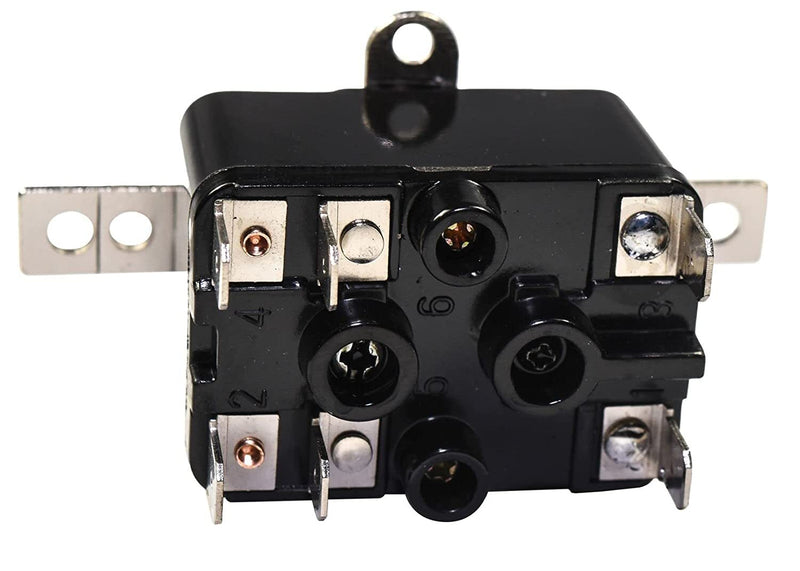

Furnace Fan Relay Coil Voltage 24 VAC 184-20114-401, 184-20114-406, 90-380 Enclosed General Purpose Fan Relay; Heavy-duty, general-purpose relay operates in any position; Replaces Emerson # 90-380; Replaces Essex OEM P/N: # 184-20114-401, 184-20114-401E, 184-20114-406, 184-20114-406C, 184-20114-406D; Compact, totally enclosed design with isolated coil and mounting bracket; 6 Wire Hook Up Terminals; Wiring Diagram printed on Relay; 6 mounting tabs. 14 FLA, 84 LRA, 125 VAC / 8 FLA, 48 RLA, 250 VAC / 25 A, 277 VAC / Coil Voltage 24 VAC; 1NO1NC; For heating and cooling applications and general switching.

Compatible Part Numbers

• 90-380

Key Features

• Product type: Relay
• SKU / MPN: 90-380
• Listed vendor: Packard

Fixes These Symptoms

• Use as a replacement only after confirming the original relay is damaged, worn, missing, or no longer performing its intended function.

Compatible Brands

• No additional brand compatibility is asserted without verified model data.

Always verify your complete appliance model number and the exact part number before ordering.
