Range Burner Receptacle Kit For: Whirlpool 330031, WP330031, AP3075808, PS340571

Range Burner Receptacle Kit – Whirlpool

Safety first: disconnect power at the supply and verify the range is de-energized before servicing. Electrical work should be performed by a qualified technician.

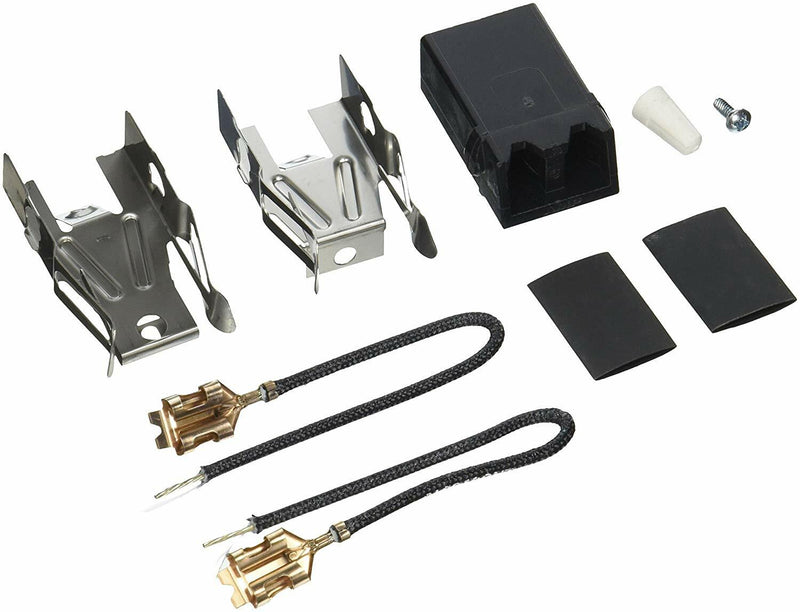

This receptacle terminal block kit connects the surface burner element to the range's wiring. When its terminals burn, melt, or lose contact, the burner may not heat, may work intermittently, or may show charring at the element terminals. The kit includes a plastic receptacle block, two metal brackets to match your original, two hi-temp wire leads, two wire connectors, two screws, and two heat-shrink insulators. Loss of heat can have several causes, so have the element and wiring checked before ordering.

Product Details

• SKU: ER330031
• Type: Range burner receptacle terminal block kit
• Kit contents: receptacle block, 2 brackets, 2 hi-temp wire leads, 2 wire connectors, 2 screws, 2 heat-shrink insulators
• Primary part number: 330031

Compatible Part Numbers

• 330031
• WP330031
• ER330031
• AP3075808
• W10841094
• 14200040
• 14200233
• 14203070
• 14205001
• 14205727
• 14209631
• 14210007
• 14254131
• 3374
• 42147
• 42153
• 4335480
• 5303935058
• 550226
• 71930
• 74-06-132
• 74-06-190
• 766339
• 99989649
• 9E28000199
• AH340571
• EA340571
• FSP330031
• PS340571
• R0157526
• R0167091
• R300
• TS300
• W10116799
• W10116803
• WB17X210
• Y0042147
• Y0042153
• Y0045536
• Y0045546
• Y0051088
• Y0054794
• Y0067069
• Y0071930
• Y0071931
• Y0075054
• Y0086726
• Y0088866
• Y0089227
• Y0089291
• Y0089336
• Y0090094
• Y0300678
• Y0308306
• Y89336
• YC2711501
• YC2716501
• YR0181149
• 5301167733
• 08002879
• 08002916
• 08002917
• 08002918
• 08002919
• 08008697
• 08011962
• 08012830
• 08012865
• 09957075
• 12871
• 318112500
• 318366400
• 42822
• 53-003
• 709T026P01
• 709T026S01
• 709T026S02
• 709T034P01
• 709T045P01
• 868464
• 9175
• A1505240
• A1505979
• G54972
• G55667
• K001167470
• K001315483
• K001319226
• K1167204
• K1167205
• K1167470
• K1310415
• K1311332
• K1312169
• K1312179
• K1312800
• K1315200
• K1315483
• K1319226
• K1323982
• K5043104
• K5043105
• K5137801
• PS470125
• R201A
• RR104
• RR109
• RR110
• RR117
• S5303310284
• AP2591744
• WB17X5091
• AP2021538
• 245919
• AH232634
• EA232634
• PS232634

Key Features

• Direct OEM-spec replacement: matches the original receptacle's terminals and mounting
• Complete kit: block, brackets, wire leads, connectors, screws, and insulators included
• Restores contact: replaces burned terminals so the burner heats reliably
• Easy installation: connects element leads to the existing wiring points

Fixes These Symptoms

• Surface burner will not heat
• Burner works intermittently or cuts out
• Visible burning, melting, or charring at the element terminals
• Only one side of a dual element heats

Compatible Brands

Whirlpool

Compatible Models

Fits various models. Please verify compatibility with us before ordering

Installation Instructions

1. Disconnect power at the breaker and verify the range is de-energized.
2. Remove the burner element and open the panel to reach the receptacle block.
3. Label the wires, then disconnect them from the old block.
4. Install the new block with the matching bracket and connect the wires exactly as labeled.
5. Replace burned wiring rather than reusing it, reinstall the covers, and run a controlled heat test.

If you are not comfortable performing this installation, contact a qualified appliance service technician.
